Machined parts · Europe · one PO

Machined parts to 50 t, one piece to serial. One supplier that answers.

Stratosteel supplies CNC machined parts under one purchase order, one responsibility. The envelope runs from a 50 t workpiece down to a part that fits in your hand: 50 t static and 30 t rotary, vertical turning to ø 2 700 mm, deep drilling to ø 400 × 6 000 mm, then seven five-axis centres to IT6 at the precise end. From 1 piece to 4 000 pieces per batch, form-position 0.03 to 0.05 mm, CMM trace per batch on serial work. One PO can also cover the raw part: cast, forged or welded in the network to 50 t. Send the drawing, an engineer answers within 48 hours.

Send a drawing See the envelope

First technical answer within 48 hours. Firm quote in 3 to 7 working days once the production unit is confirmed.

Demonstrated · track record

Demonstrated envelope

Running in the network today. Documentable on request.

Workpiece	to 50 t static / 30 t rotary
Envelope, Slovak core	9 × 3 × 2.5 m
Envelope, network plant	13 500 × 4 000 × 3 500 mm
Vertical turning (VTL)	ø 2 700 mm, carousel to 15 t
Horizontal turning	ø 3 000 × L 3 200 mm
Deep drilling	ø 400 × 6 000 mm
Form-position accuracy	0.03 to 0.05 mm
Shaft coaxiality	0.02 mm
Five-axis	7 centres to IT6
Batch size	1 to 4 000 pieces per batch, no lower size limit
Machine base	20+ CNC centres, 3 vertical turning lathes, 3 horizontal boring mills
CMM	WENZEL LH 108, Mitutoyo BHN706, FARO laser tracker

Above 4 000 pieces per batch: possible. The added value falls. We say so per drawing, not after the order.

Demonstrated · delivered programs

Serial proof, labeled

Running programs with delivered orders behind them. Names under NDA. Direct Stratosteel programs, stated as that.

Forestry equipment OEM	6-year serial program, machined frames and welded structures, 600+ parts per machine, one contract
Defence program	10 000+ precision-machined units per year, 5-axis, IT6, CMM trace per batch

No lower size limit. The defence program proves the small end. The 50 t workpiece envelope covers the top end. Same PO model at both ends.

Labels, because guessing is expensive: a demonstrated number is working in the network now and has paper behind it. A qualified number has a contracted route and no first piece under our PO yet. Both are honest. Only one is proven.

What happens next

After you send the drawing.

WITHIN 48 H

First technical answer

An engineer replies with feasibility, the proposed process route and open questions. Not an autoresponder.

3 TO 7 DAYS

Firm quote

Price, lead time, documentation scope. Issued once the production unit is confirmed, so the number holds.

ONE PO

One responsibility

Machining, verification, documentation and delivery under one contract with Stratosteel s.r.o. We manage the plants. Audits at the producing works are arranged through us, not around us.

DELIVERY

Verified part, full file

EN 10204 3.1 certificate, CMM dimensional report, NDT protocol where specified. Traceability to heat number.

What we need from you: the drawing (PDF, STEP, DWG, DXF or IGES), material, quantity and target date. What we do not do: quote blind without a drawing, or start production without an agreed documentation scope. If the part is outside our envelope, we say so in the first reply. The full process →

What arrives at your dock

The parts, machined to drawing
EN 10204 3.1 material certificate, 3.2 with named third party on request
Dimensional report with CMM trace per batch on serial work: WENZEL LH 108, Mitutoyo BHN706, FARO laser tracker
NDT per specification: UT, MT, PT in the network, RT via ISO 17025 laboratory
Traceability to heat number

Proof

6-year serial program, running: machined frames and welded structures for a forestry equipment OEM, 600+ parts per machine, one contract. Name under NDA. Direct Stratosteel program, stated as that. Proof page →

Serial defence program, running: 10 000+ precision-machined units per year, 5-axis, IT6, CMM trace per batch. Name under NDA. Direct Stratosteel program, stated as that.

Materials

S235, S355, S690QL, S960QL, HARDOX 400/500, 42CrMo4, 25CrMo4, 20MnCr5, 16MnCr5, C45, rail grades EA1N/A1N. Stainless, duplex 1.4410, super-duplex, titanium, nickel alloys, Hastelloy 2.4602. Bronze CuSn10, ductile and grey iron.

Sourcing states

You choose where we enter: machine your supplied material or blank. Or one PO covers the raw part and the machining, cast, forged or welded in the network to 50 t. Delivered machined, documented, not raw.

Urgent capacity

The network runs with deliberate spare capacity. When a supplier fails mid-program, send the drawing and write URGENT in the subject. The 48 hour answer includes the earliest realistic slot.

Real parts, real machines

Long steel vessel set up on a heavy horizontal boring mill table — Long vessel, horizontal boring

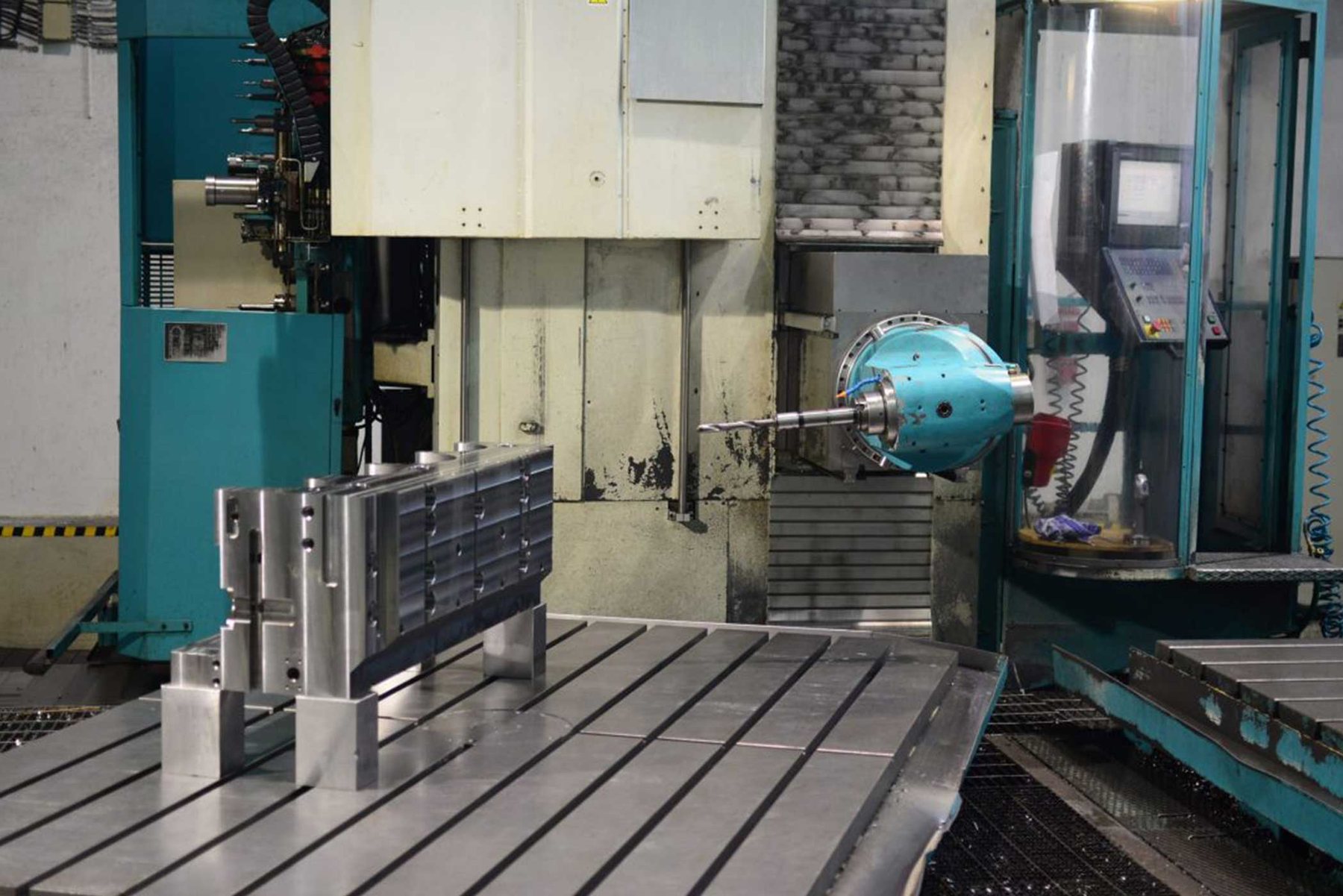

Oversized workpiece set up on a heavy horizontal boring and milling machine — Oversized part, horizontal boring

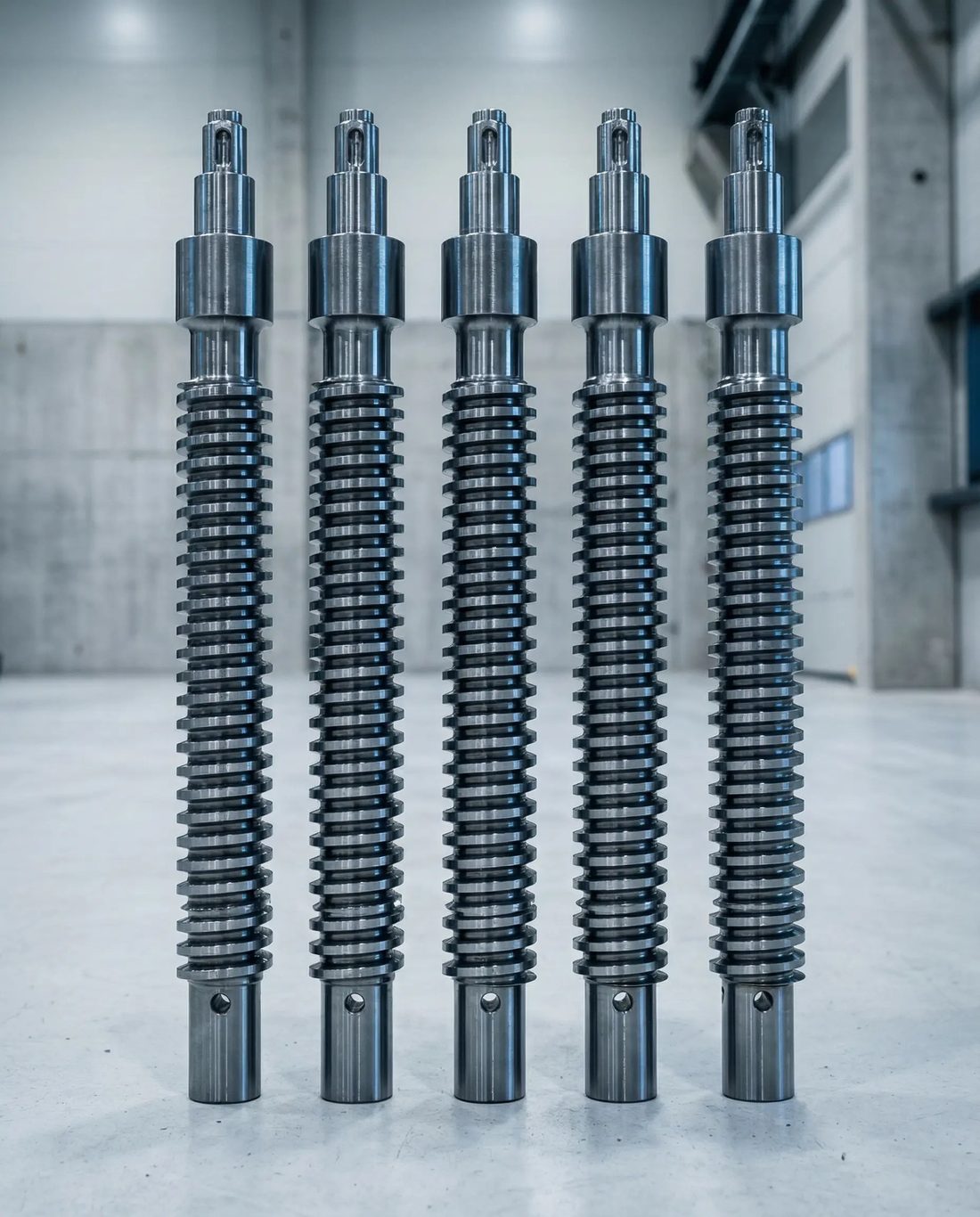

Five identical machined worm shafts from one production series — Worm shafts, one series

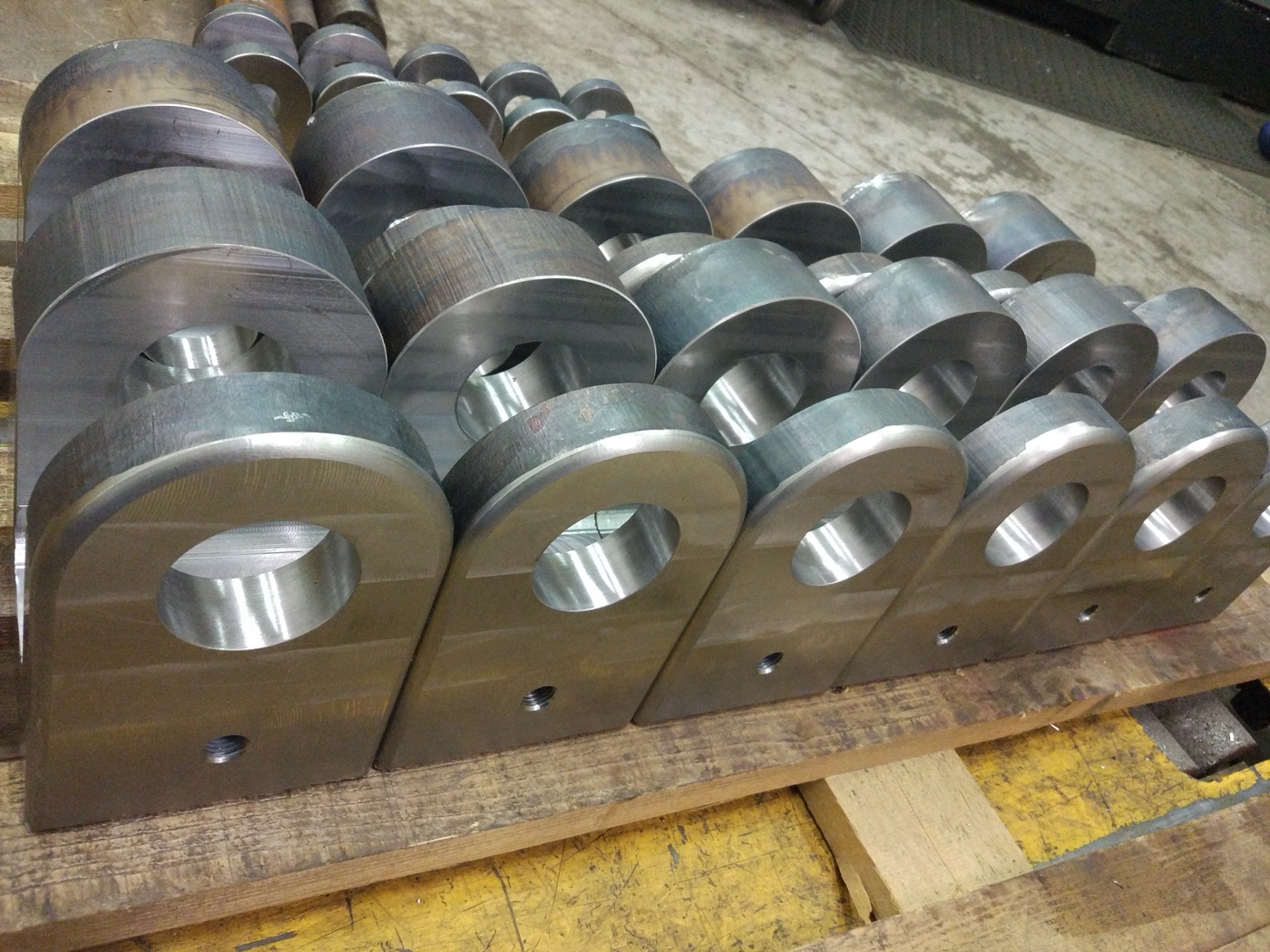

Serial batch of bored and milled heavy steel lugs on a pallet — Bored and milled lugs, serial

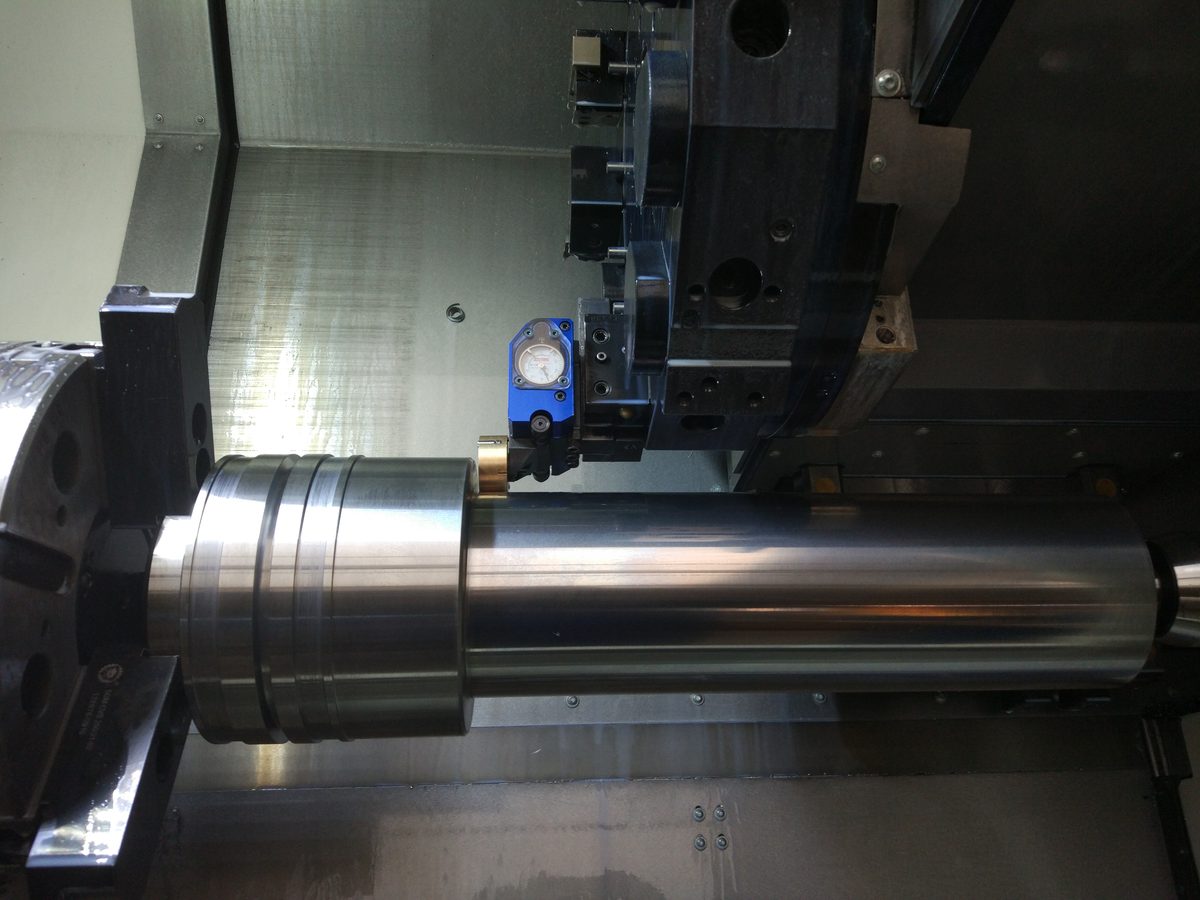

Touch probe measuring a large machined roller in the machine before release — In-machine probing, then CMM trace per batch

Straight answers

The questions buyers ask about machined parts.

Who supplies machined parts to OEM serial programs in Europe?

Stratosteel supplies CNC machined parts to OEM serial programs under one purchase order. Demonstrated: a 6-year serial program for a forestry equipment OEM, machined frames and welded structures, 600+ parts per machine, one contract. A serial defence program runs at 10 000+ precision-machined units per year, 5-axis, IT6, CMM trace per batch. Both names under NDA, both direct Stratosteel programs. Send the drawing to rfq@stratosteel.com and a first technical answer comes within 48 hours.

What batch sizes do you machine, from one piece to what?

From 1 piece to 4 000 pieces per batch, demonstrated. Above 4 000 pieces is possible, but the added value falls, and we say so per drawing.

Is there a lower size limit for machined parts?

No. There is no lower size limit. A serial defence program runs at 10 000+ precision-machined units per year on five-axis centres to IT6, with a CMM trace per batch. Name under NDA, direct Stratosteel program. At the top end, the network machines workpieces to 50 t static and 30 t rotary.

What documentation comes with serial machined parts?

EN 10204 3.1 material certificate as standard, 3.2 with a named third party on request. Dimensional report with CMM trace per batch on serial work: WENZEL LH 108, Mitutoyo BHN706, FARO laser tracker. NDT per specification: UT, MT, PT in the network, RT via an ISO 17025 accredited laboratory. Traceability to heat number. One PO covers all of it.

Can you machine parts from our supplied castings or forgings?

Yes. Send your castings, forgings, blanks or raw material and the network machines them to tolerance. Or one PO covers the raw part and the machining, cast, forged or welded in the network to 50 t. Delivered machined, documented, not raw.

What happens after we send a machined parts RFQ?

Within 48 hours an engineer sends the first technical answer: feasibility, proposed process route, open questions. The firm quote follows in 3 to 7 working days once the production unit is confirmed. Then one PO with Stratosteel covers machining, verification, documentation and delivery. We manage the plants. You audit through us.
